How To : Automatically Re-Initialise A Bearer Token Using InnonQuickAPI

Most Bearer Tokens Will Reset After A 24 Hour Period, This Article Will Show You The Process Of Re-Calling Your Bearer Token Automatically

For this guide, as an example, we will be parsing data through a Milesight UG65

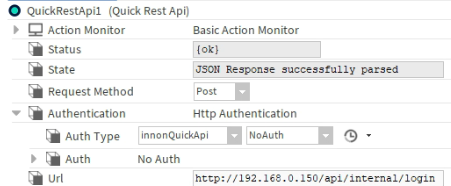

We will first need to find the appropriate url for this call.

http://192.168.0.150/api/internal/login

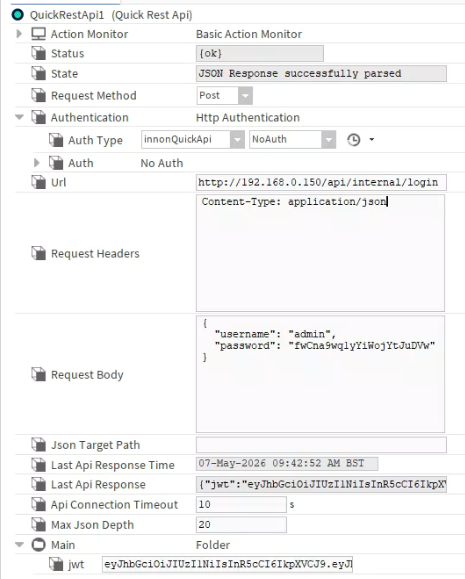

Then we will need to send through our request, in this case, we are requesting the bearer token.

Request Header

Content-Type: application/json

Request Body

{
  "username": "admin",
  "password": "*Encrepyted Password*"
}

In order to retrieve your ecrypted password

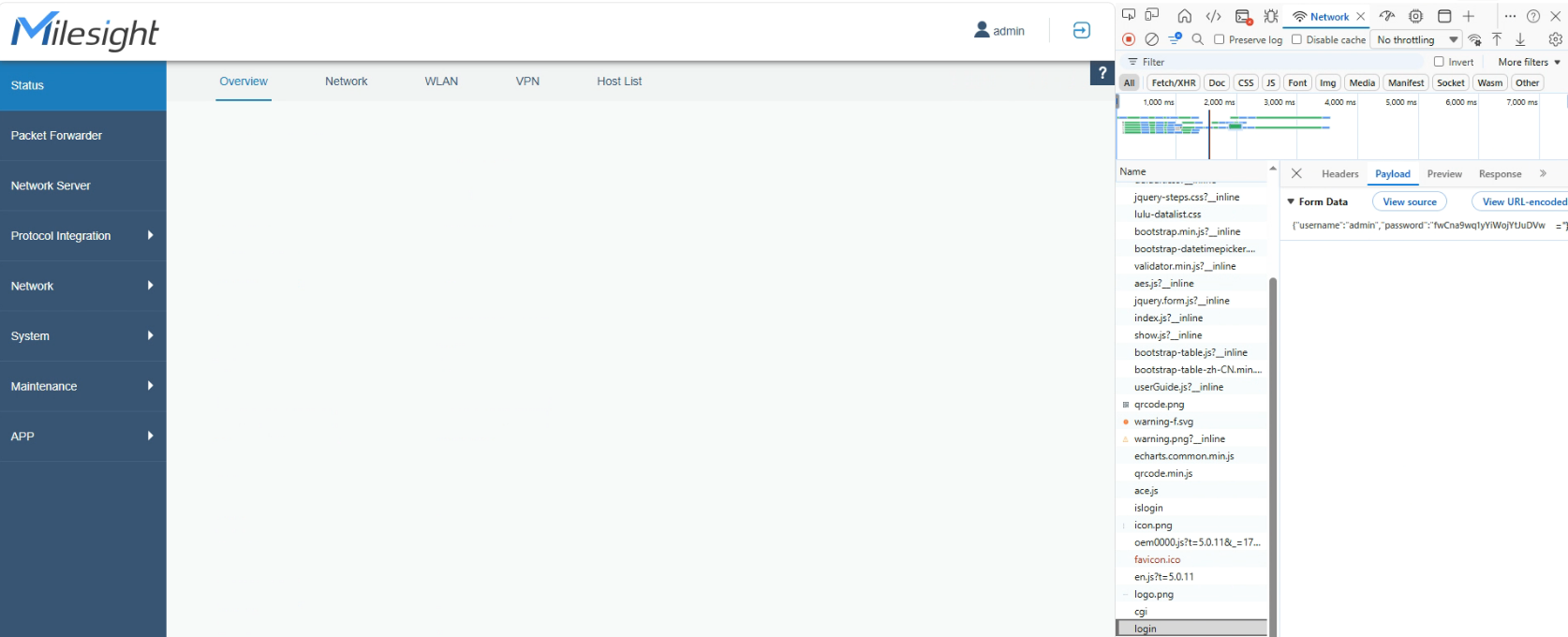

Open up developer tools, login to the gateway and find your "Login" packet.

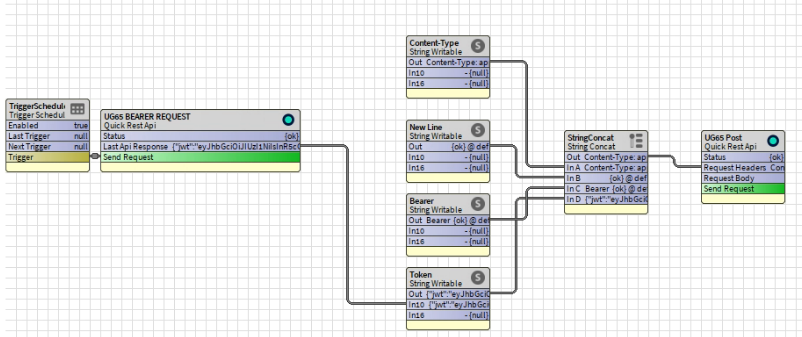

To turn this into an automatic process you will need to follow the below logic.

Trigger Schedule - To Re-request your bearer token every 24 hours.

String Writable - (Content-Type : application/json) which includes the first part of your header



Then to add a new line to your header, you will need to add a blank space, quite tricky in niagara.

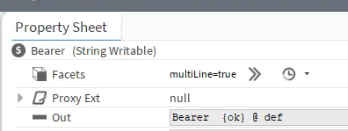

You will first need to edit the facets of your second String.


Then right click > action the string.

Then press enter to add a new line, then "ok"

Repeat this process on 3rd string but name it "Bearer" with a space



For your final string, your output of your bearer request, as below.



This can be then combined using a "StringConcat"

Pallete > KitControl > String > StrinConcat

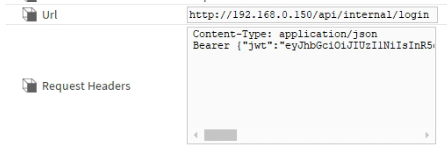

Which will then present as the below.
