Milesight EG71 Setup, Integration And Configuration

Connection Methods

Just like the UG65, you can connect to the EG71 either via its onboard Wi-Fi or through one of the Ethernet ports.

Connecting via Wi-Fi

 1. On your laptop or PC, search for the Wi-Fi network (SSID):

   `Gateway_XXXXXX`

 where `XXXXXX` are the last 6 digits of the Wi-Fi MAC address.

 2. Connect using the default Wi-Fi password:

   `iotpassword`

 3.  Open a web browser (Chrome is highly recommended).

 4. In the address bar, enter:

   https://192.168.2.1

 5. When the web GUI loads, log in with the default credentials:

   - Username: admin

   - Password: password

Connecting via Ethernet (ETH)

 1. Connect your laptop or PC to the ETH2 port of the EG71 using an Ethernet cable.

 2. Assign a suitable IP address to your laptop/PC in the same range as the gateway.

 3. On the EG71 screen:

1. Press any button to wake the screen.
2. Press the navigation button to open the interface Status menu.
3. Use the button again to scroll to the Ethernet Status page and note the ETH1/ETH2 IP address (format: `xx.xx.xx.xx`).

 4. Open a web browser (Chrome recommended) and enter:

   `https://xx.xx.xx.xx`

   replacing with the IP address you obtained.

 5. Log in using the default credentials:

   - Username: admin

   - Password: password

Initial Setup

For a quick first-time configuration, you can use the Setup Wizard.

The wizard guides you through basic device settings and typical configuration options.

Status Overview

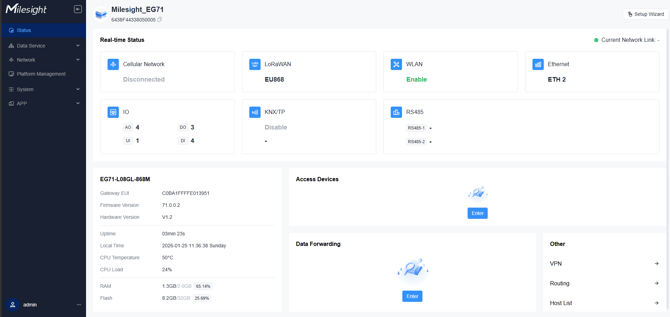

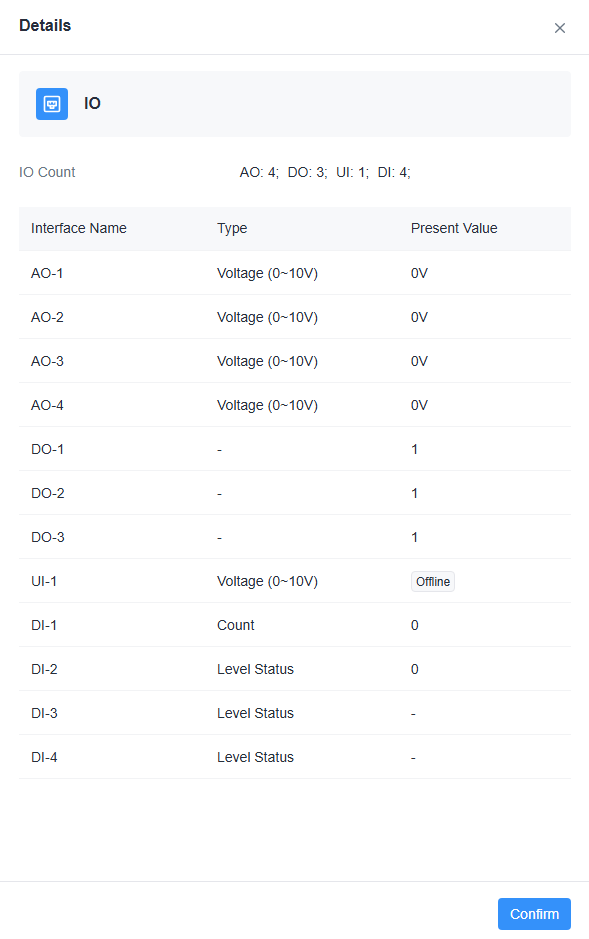

The homepage of the web GUI displays various status indicators for the unit, including:

IO Status

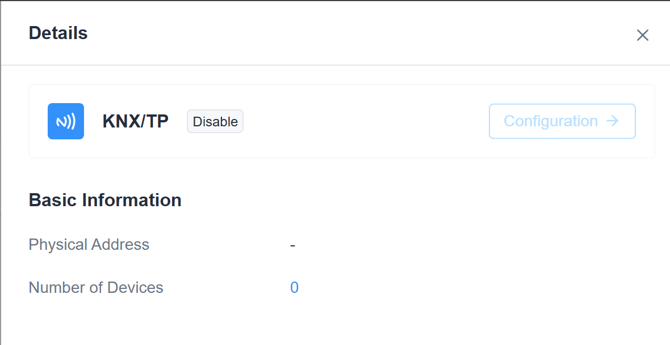

 KNX/TP Status

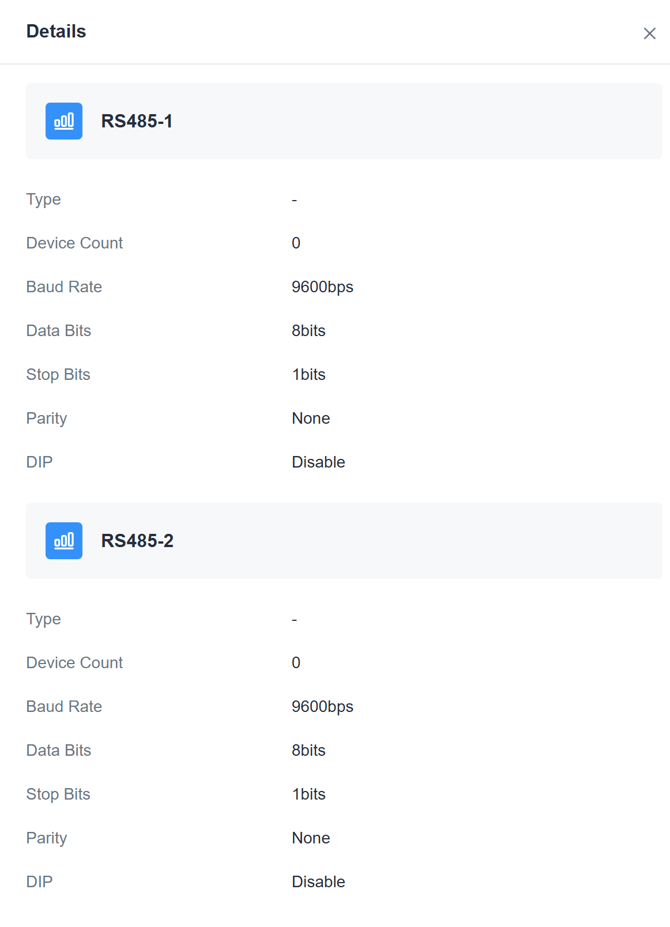

 RS485 Status

Cellular, Ethernet, WLAN, and LoRa status

Adding Protocol Functionality

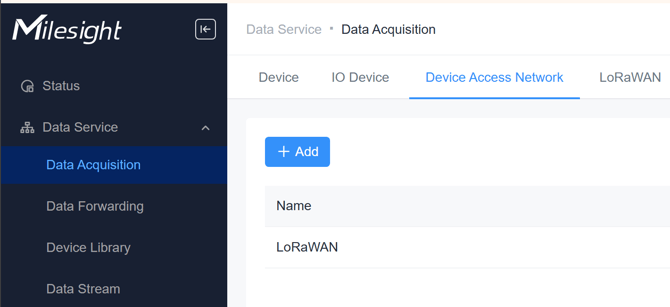

To enable and configure different protocol functions on the EG71:

1. Go to:

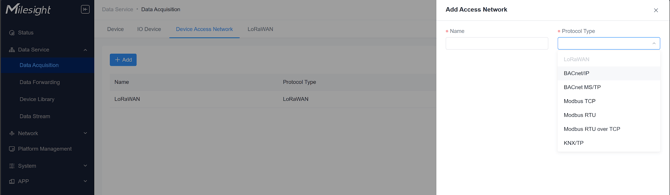

   Data Service > Data Acquisition > Device Access Network



 2. Here you can add and configure the different Access Types as required



Adding Third‑Party Devices

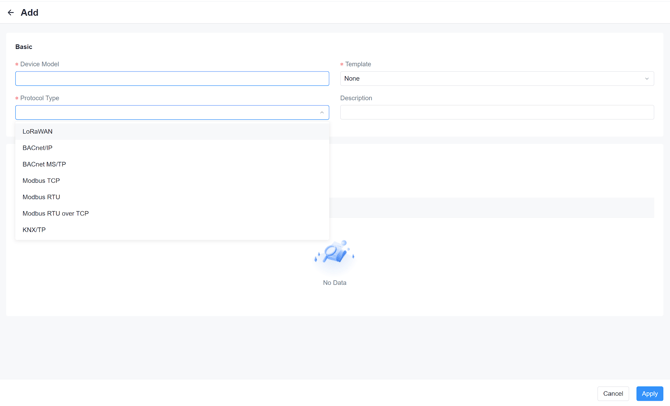

If you need to add a device that is not part of the standard Milesight range:

 1. Navigate to:

   Data Service > Device Library > Custom Device Repository

 2. Add your custom device details.

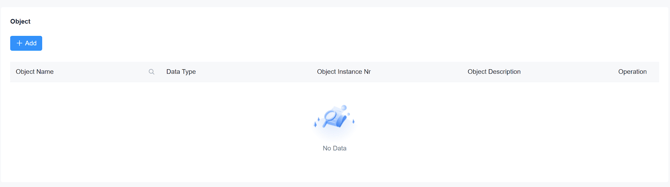

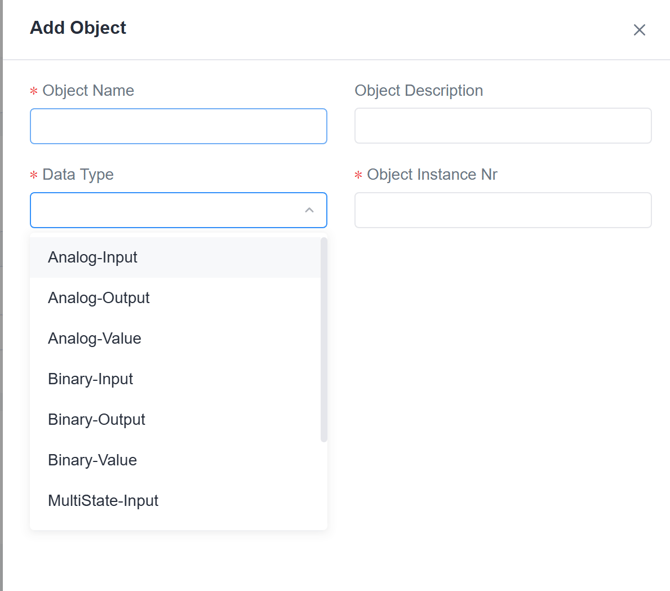

 3. Then add the device Objects, including:

   - Object Name

   - Object Description

   - Data Type

   - Object Instance Number

Adding the Device

Once your objects are created:

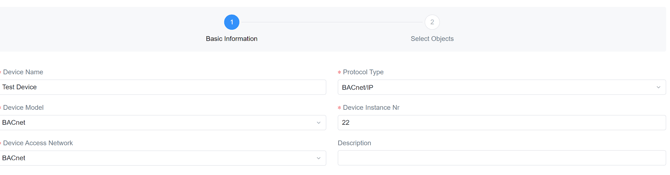

 1. Go to:

   Data Service > Data Acquisition > Device > Manually Add





 2. Configure:

   - Device Name

   - Device Model (your added model)

   - Protocol Type (your configured protocol)

   - Access Network (your configured access network)

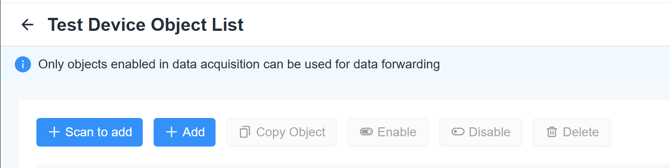

 3. You can now:

   - Add the objects you created manually, or

   - Use the Scan function to add them automatically where supported.

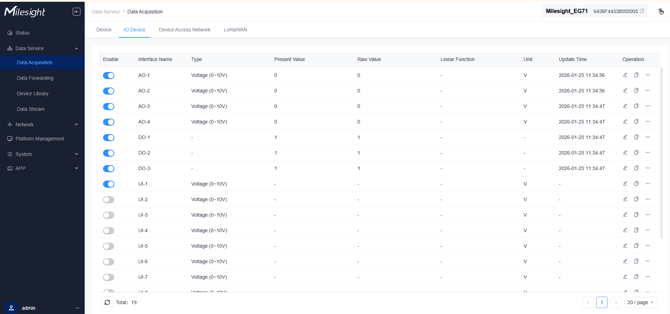

IO Configuration

The web UI supports IO configuration via:

Data Service > Data Acquisition > IO Device

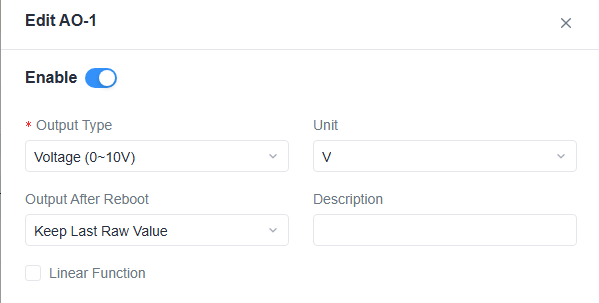

To edit IO parameters, click the edit icon next to the IO point you want to change.

You can configure:

  - Output Type

  - Unit

  - Description

  - Desired output state after reboot

Data Forwarding (Exporting Data)

To forward objects from the EG71 to a supervisor, JACE, or cloud system:

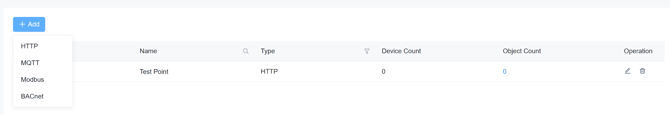

 1. Go to:

   Data Service > Data Forwarding > Add





 2.Choose from the available forwarding protocols:

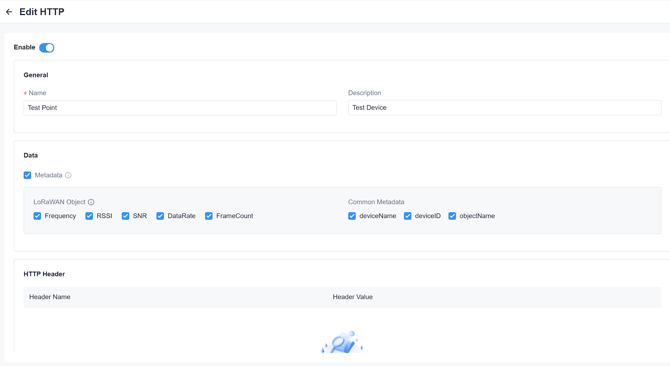

   - HTTP

 - Select the required metadata and payload as needed.

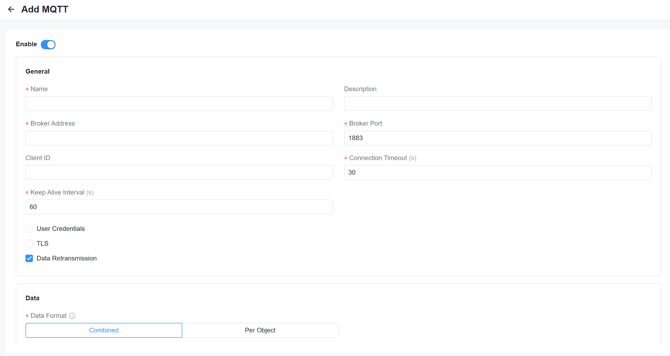

  - MQTT

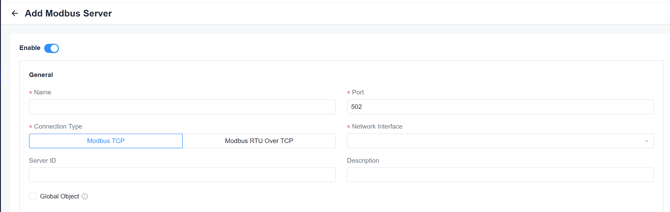

 - Built‑in Modbus server

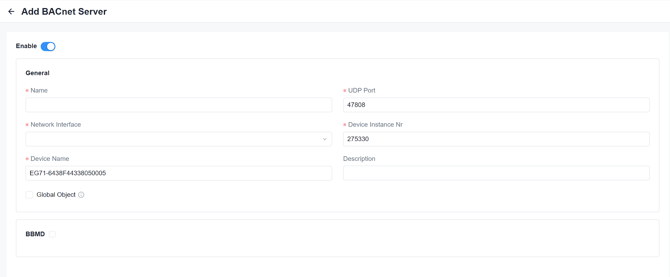

- Built‑in BACnet serverr
